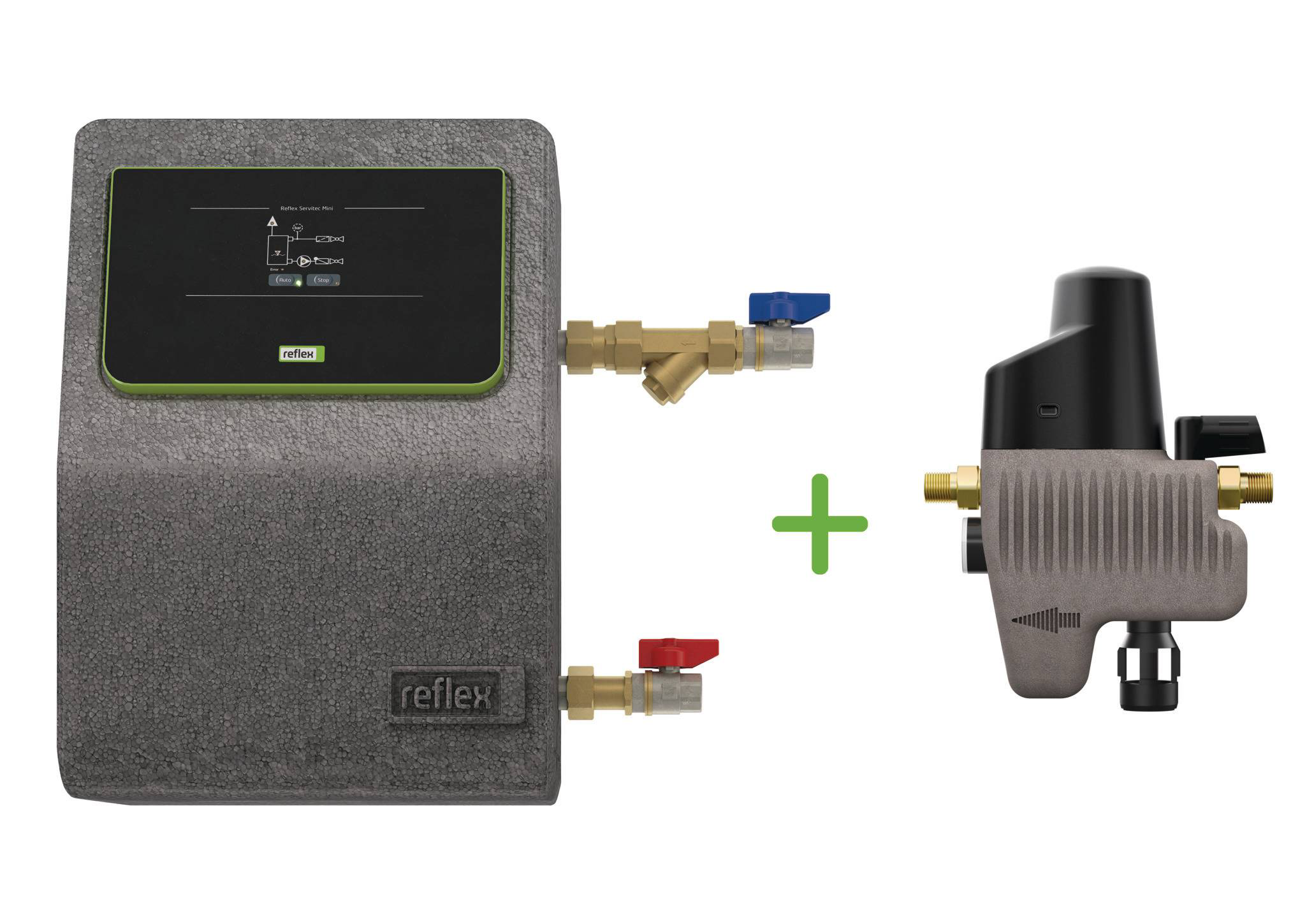

Servitec Mini Fillcontrol Plus Compact
Product number: 8835900
Price on request
Only one delivery type can be selected per cart. Currently selected delivery type is "AIT-Nord OÜ".
Only one delivery type can be selected per cart. Currently selected delivery type is "Reflex Winkelmann".
Product information
Servitec Mini Fillcontrol Plus Compact
In case of local collection, the stated price is a non-binding indicator and the dealer will confirm the order, including price and delivery time.
Downloads
Product brochure | PDF
Download
In case of local collection, the stated price is a non-binding indicator and the dealer will confirm the order, including price and delivery time.
Technical Data
| Buying options: | Request quotation |
|---|---|
| Connection outflow side: | G 1/2" |
| Depth: | 220 mm |
| Electric connection: | 230V/50Hz |
| Flow rate characteristic value kvs: | 0.4 m³/h |
| Height: | 420 mm |
| Inlet/outlet connection: | R 1/2" / R 1/2" |
| Max. ambient temperature: | 45 °C |
| Max. electrical rated power: | 0.06 kW |
| Max. partial volume flow network: | 0.050 m³/h |
| Max. perm. operating pressure: | 4 bar |
| Max. perm. operating temperature: | 60 °C |
| Max. sound pressure level: | 55 dB(A) |
| Max. system volume: | 1 m³ |
| Min. ambient temperature: | 1 °C |
| Pressure side connection: | G 1/2" |
| Rated electrical current: | 0.30 A |
| Separation level, dissolved gases to: | 90 % |
| Type: | Mini Fillcontrol Plus Compact |
| Weight: | 8.60 kg |
| Width: | 295 mm |
