Longtherm RMB-14-2-20
Product number: 8031200
Price on request
Only one delivery type can be selected per cart. Currently selected delivery type is "AIT-Nord OÜ".
Only one delivery type can be selected per cart. Currently selected delivery type is "Reflex Winkelmann".
Product information

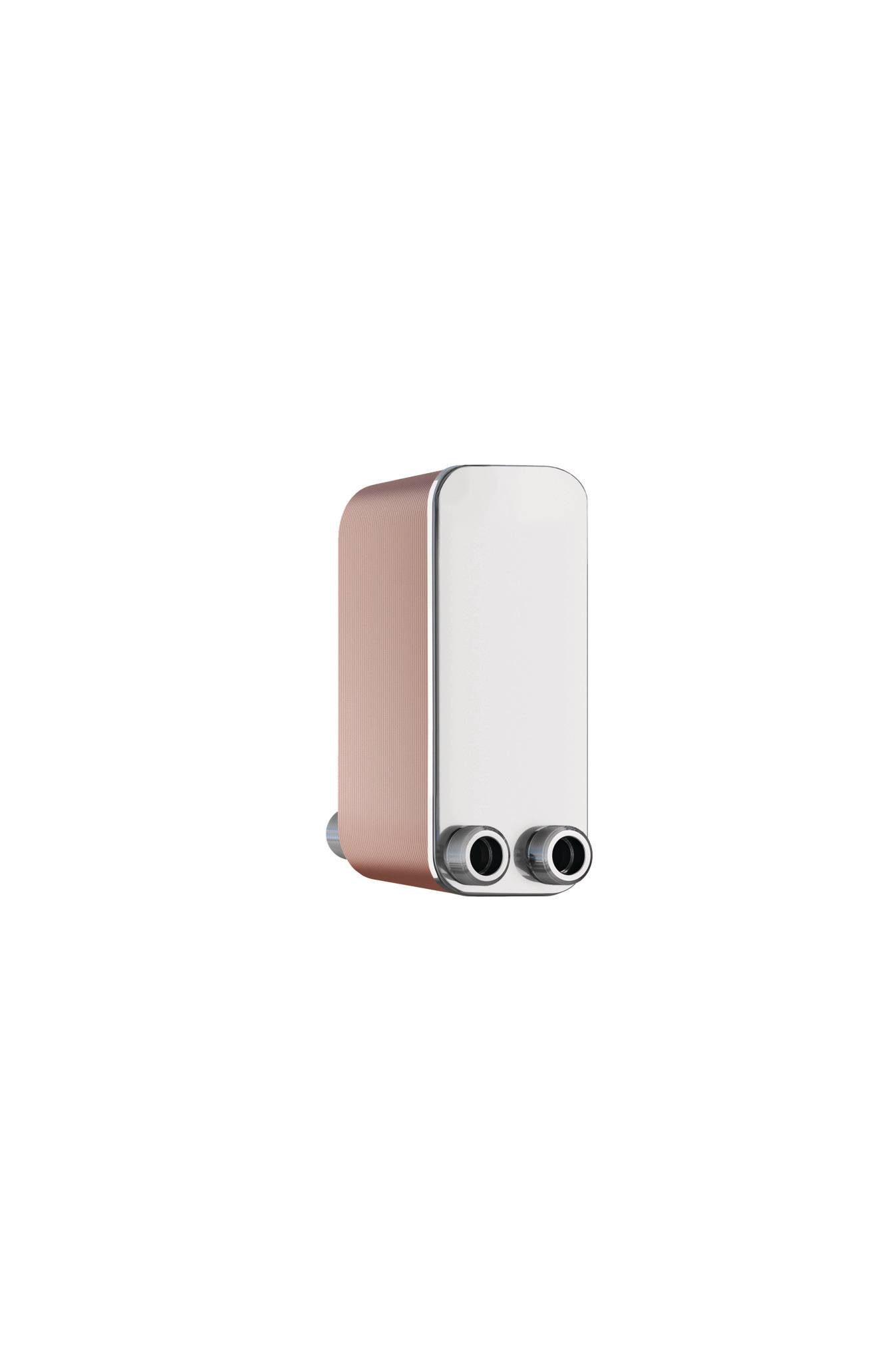

Longtherm RMB-14-2-20, brazed heat exchanger, 230 °C, 30 bar
In case of local collection, the stated price is a non-binding indicator and the dealer will confirm the order, including price and delivery time.
In case of local collection, the stated price is a non-binding indicator and the dealer will confirm the order, including price and delivery time.
Technical Data
| Buying options: | Request quotation |
|---|---|
| Connection: | AG 3/4" |
| Connection material: | AISI 316L |
| Connection variant: | Pipe with thread |
| Depth: | 55 mm |
| Height: | 203 mm |
| Max. perm. operating pressure: | 30 bar |
| Max. perm. operating temperature: | 230 °C |
| Max. primary/secondary expansion: | 100 K |
| Number of plates: | 20 |
| Plate material: | AISI 316L |
| Plate thickness: | 0.30 mm |
| Sealing material: | copper |
| Type: | RMB-14-2-20 |
| Volume primary side (k2/k3): | 0.20 l |
| Volume secondary side (k4/k1): | 0.20 l |
| Weight: | 1.60 kg |
| Width: | 81 mm |
| Width primary-secondary: | 42 mm |
