Extwin TW 76.1
Product number: 8253110
Price on request
Only one delivery type can be selected per cart. Currently selected delivery type is "AIT-Nord OÜ".
Only one delivery type can be selected per cart. Currently selected delivery type is "Reflex Winkelmann".
Product information

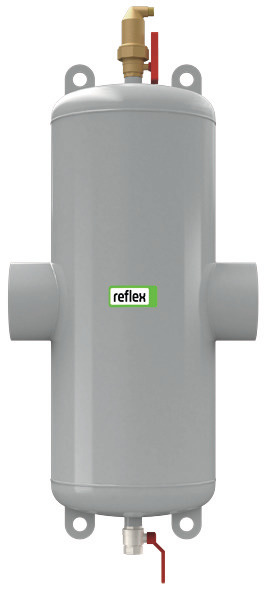

Extwin TW 76.1, Micro-bubble/dirt separator with welded connector of painted steel, 110 °C, 10 bar
In case of local collection, the stated price is a non-binding indicator and the dealer will confirm the order, including price and delivery time.
In case of local collection, the stated price is a non-binding indicator and the dealer will confirm the order, including price and delivery time.
Technical Data
| Buying options: | Request quotation |
|---|---|
| Colour: | grey |
| Connection: | 76,1 |
| Connection variant: | welded connector |
| Diameter: | 132 mm |
| Flow rate characteristic value kvs: | 121.7 m³/h |
| Height: | 785 mm |
| Height mid-flange (air separation): | 450 mm |
| Height mid-flange (dirt separation): | 335 mm |
| Housing material: | painted steel |
| Installation length: | 260 mm |
| Installation variant: | horizontal |
| Max. volume flow: | 20.0 m³/h |
| Min. maintenance height: | 370 mm |
| Operating pressure: | 10 bar |
| Operating temperature: | 0 °C - 110 °C |
| Type: | TW 76.1 |
| Weight: | 5.00 kg |
