Exdirt D 80
Product number: 8252320
Price on request
Only one delivery type can be selected per cart. Currently selected delivery type is "AIT-Nord OÜ".
Only one delivery type can be selected per cart. Currently selected delivery type is "Reflex Winkelmann".
Product information

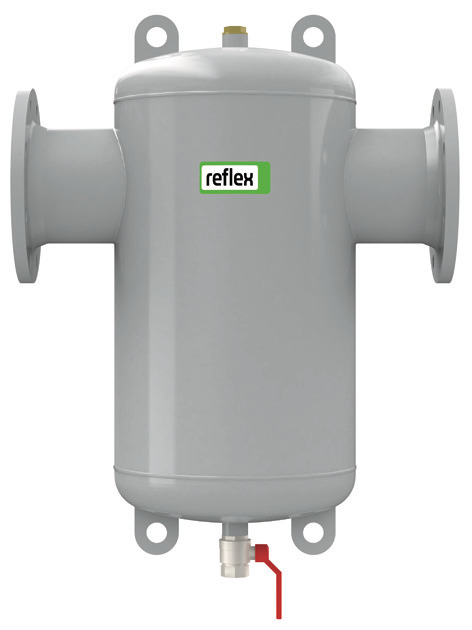

Exdirt D 80, dirt separator with flange, 110 °C, 10 bar
In case of local collection, the stated price is a non-binding indicator and the dealer will confirm the order, including price and delivery time.
In case of local collection, the stated price is a non-binding indicator and the dealer will confirm the order, including price and delivery time.
Technical Data
| Buying options: | Request quotation |
|---|---|
| Cleaning connection: | IG 1" |
| Colour: | grey |
| Connection: | DN80/PN16 |
| Connection variant: | flange |
| Diameter: | 206 mm |
| Flow rate characteristic value kvs: | 158.5 m³/h |
| Height: | 636 mm |
| Height mid-flange (dirt separation): | 170 mm |
| Housing material: | painted steel |
| Installation length: | 470 mm |
| Installation variant: | horizontal |
| Max. volume flow: | 27.0 m³/h |
| Min. maintenance height: | 370 mm |
| Number of holes in flange: | 8 hole |
| Operating pressure: | 10 bar |
| Operating temperature: | 0 °C - 110 °C |
| Type: | D 80 |
| Weight: | 17.60 kg |
